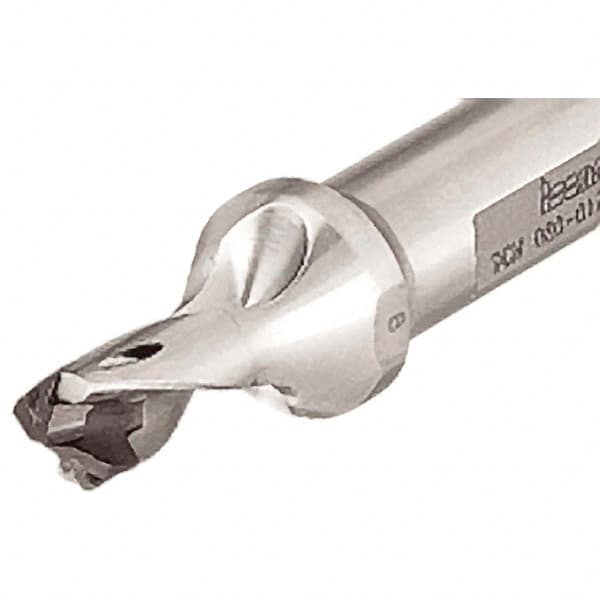

Iscar - 1-1/16" to 27.9mm Diam, 1.5xD, 41mm Max Depth, 40mm Shank Diam, 151.1mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50100403 Toolholder, Series SumoCham
Item #: 50100403
Brand: Iscar
Model #: 3203120
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 27.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (mm) | 27.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.0984 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.6142 |
| Maximum Drill Depth (mm) | 41.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 83.10 |
| Body Length (Decimal Inch) | 3.2717 |
| Overall Length (mm) | 151.10 |
| Overall Length (Decimal Inch) | 5.9488 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
