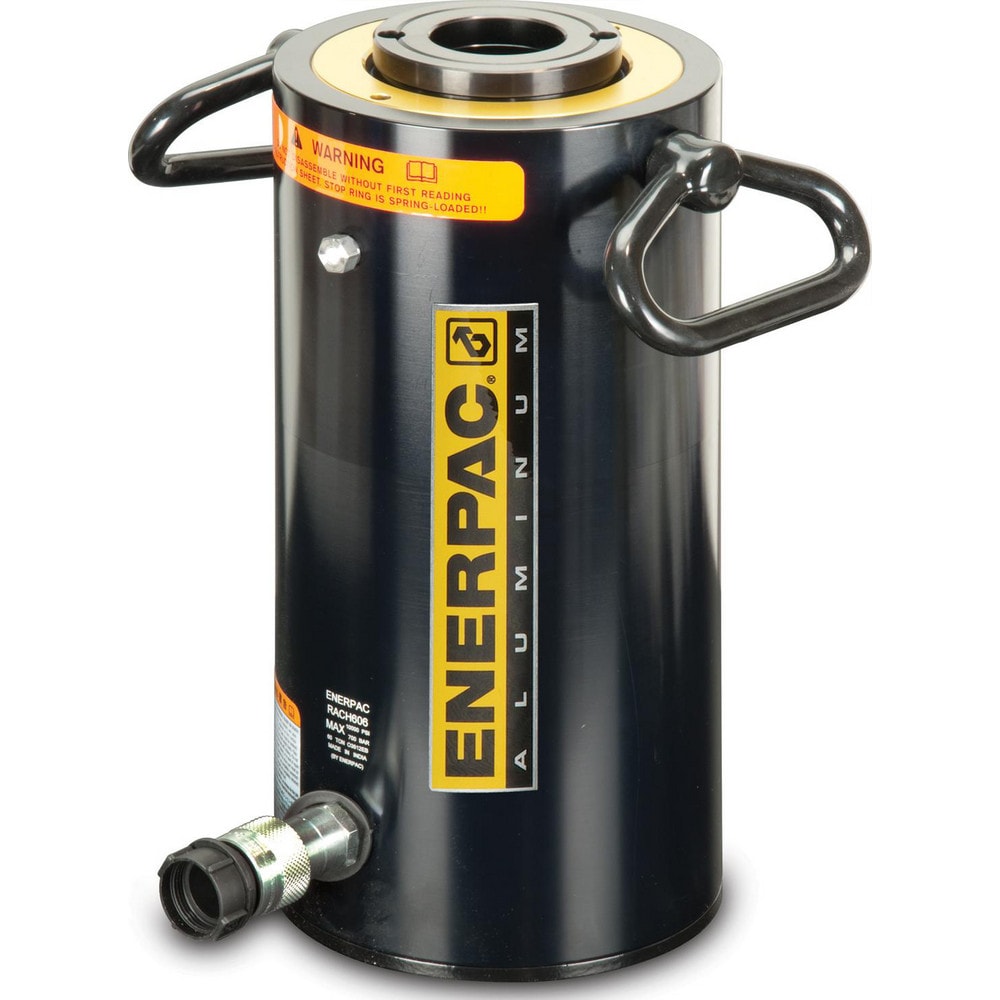

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 66; Stroke Length: 3.94; Oil Capacity: 51.69; Cylinder Bore Diameter (Decimal Inch): 5.12; Cylinder Effective Area: 1; Lowered Height: 12.41
Item #: 72622350
Brand: Enerpac
Model #: RACH604
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 66 |
| Stroke Length | 3.94 |
| Oil Capacity | 51.69 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 12.41 |
| Retracted Length | 12 |
| Extended Length | 16.35 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 7.09 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 3.94 |
| Series | RACH |
| Y Center Hole Diameter | 2.13 |
| Maximum Height (Inch) | 16.3500 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 66 |
| Stroke Length | 3.94 |
| Oil Capacity | 51.69 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 12.41 |
| Retracted Length | 12 |
| Extended Length | 16.35 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 7.09 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 3.94 |
| Series | RACH |
| Y Center Hole Diameter | 2.13 |
| Maximum Height (Inch) | 16.3500 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
| MSC Part # | 72622350 |
| Mfr Part # | RACH604 |
| Country of Origin Country of Origin is subject to change | India |
