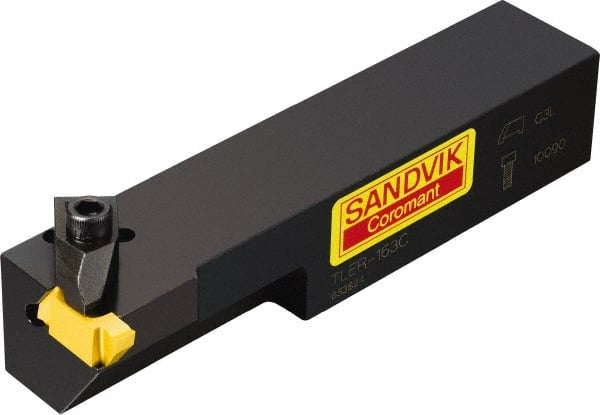

Sandvik Coromant - TLE, Internal or External, Left Hand, 0.18" Max Depth of Cut, Indexable Grooving Tool Holder - TLG-3189R Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 50130608
Brand: Sandvik Coromant
Model #: 5753006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | TLE |
| Insert Compatibility | TLG-3189R |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Top Lok |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Threading |
| Insert Seat Size | 3 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5753006 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TLG-3189R |
| Shank Diameter (Decimal Inch) | 1.0000 |
