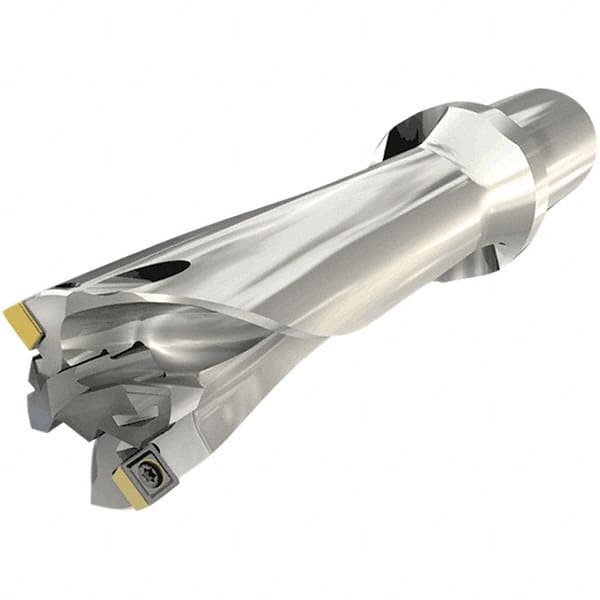

Iscar - 1-1/4" Max Diam, 5xD, 6-1/4" Max Drill Depth, 1-1/4" Shank Diam, 10.17" OAL, Replaceable Tip Drill - HCP-IQ, ICG, ICP, SOGX-W Insert, MNC Toolholder, Series CombiCham
Item #: 50143783
Brand: Iscar
Model #: 3203551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 6.2500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HCP-IQ; ICG; ICP; SOGX-W |
| Toolholder Style | MNC |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.1340 |
| Flute Length (Decimal Inch) | 6.2500 |
| Body Length (Decimal Inch) | 7.8100 |
| Overall Length (Decimal Inch) | 10.1700 |
| Shank Length (Decimal Inch) | 2.3600 |
