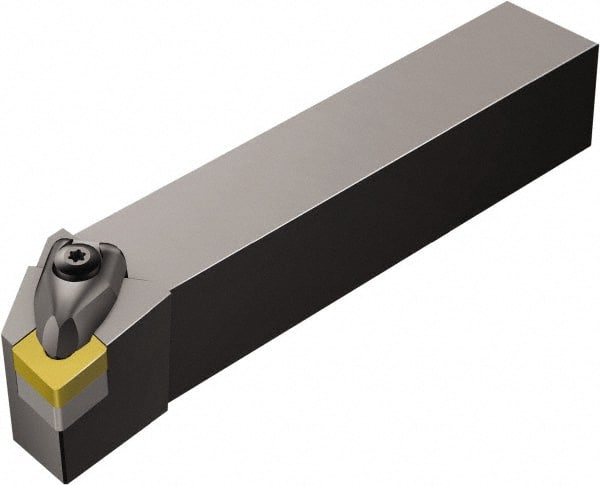

Sandvik Coromant - DCLN, Left Hand Cut, -5° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CNMG 16 06 12 Insert Compatibility, Series T-Max P
Item #: 50158823
Brand: Sandvik Coromant
Model #: 5730563
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (Inch) | 1-1/2 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNMG 16 06 12 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (Inch) | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1.5400 |
| Toolholder Material | Steel |
