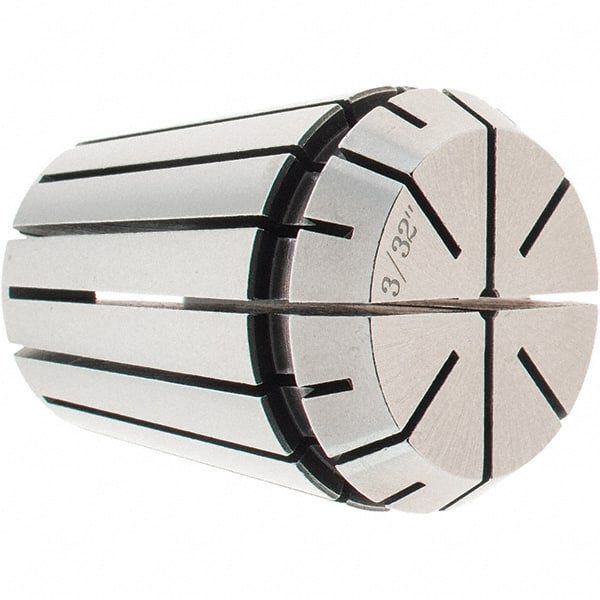

Accupro - 3/32" ER32 Collet - 0.01mm TIR, 40mm OAL, 33mm Overall Diam
Item #: 50337039
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER32 |
| Size Range (Inch) | 3/32 |
| Size (Inch) | 3/32 |
| Size (Decimal Inch) | 0.0938 |
| TIR (mm) | 0.0100 |
| Minimum Collet Capacity (mm) | 1.57 |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Maximum Collet Capacity (mm) | 2.38 |
| Maximum Collet Capacity (Inch) | 3/32 |
| Maximum Collet Capacity (Decimal Inch) | 0.0940 |
| Overall Length (mm) | 40.00 |
| Overall Diameter (mm) | 33.00 |
| Number of Pieces | 1 |
| PSC Code | 5136 |
