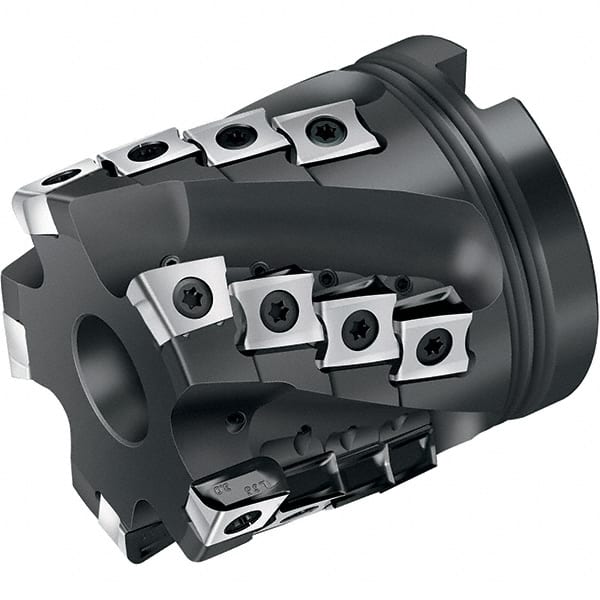

Walter - 63mm Cut Diam, 27mm Arbor Diam, 46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 70mm High, XNHX1306..R & LNHX120604R Insert Compatibility, Through Coolant, Series M3255
Item #: 50338425
Brand: Walter
Model #: 6959345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 70.00 |
| Insert Compatibility | XNHX1306..R; LNHX120604R |
| Series | M3255 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 46.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | M3255 |
| Number of Flutes | 5 |
| Cutting Rake Angle | 90 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 18000 |
| Cutting Edge Length (Inch) | 2.7560 |
| Cutting Edge Length (Decimal Inch) | 2.7560 |
| Toolholder Material | Steel |
