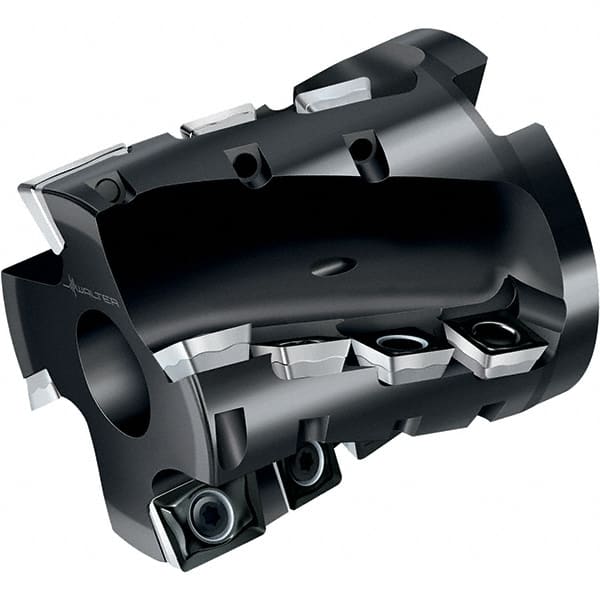

Walter - 3" Cut Diam, 1-1/4" Arbor Diam, 67mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 80mm High, LDM.170408R & SDM.120408 Insert Compatibility, Through Coolant, Series M4258
Item #: 50339076
Brand: Walter
Model #: 6903694
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Lead Angle | 90 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | LDM.170408R; SDM.120408 |
| Series | M4258 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 67.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | M4258 |
| Number of Flutes | 3 |
| Cutting Rake Angle | 90 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 13300 |
| Cutting Edge Length (Inch) | 3.1500 |
| Cutting Edge Length (Decimal Inch) | 3.1500 |
| Toolholder Material | Steel |
