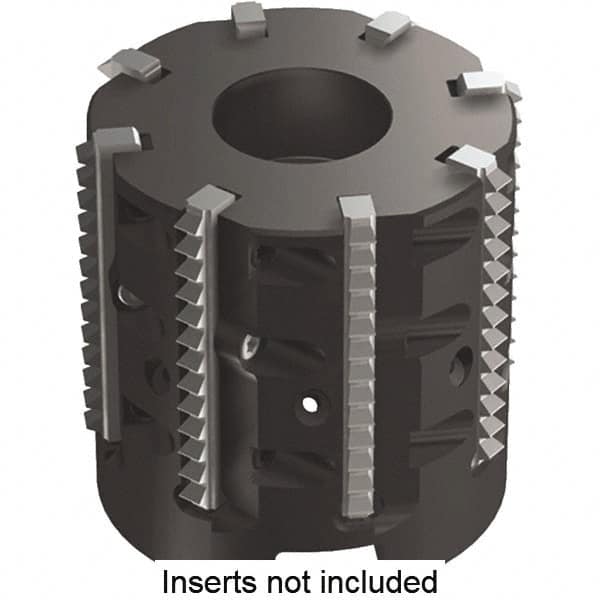

Kennametal - 2.32" Cut Diam, 1.58" Max Depth of Cut, 1" Arbor Hole Diam, Indexable Thread Mill - Insert Style TM25, 25mm Insert Size, 9 Inserts, Toolholder Style TMS25, 1.58" OAL
Item #: 50341031
Brand: Kennametal
Model #: 5593145
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3200 |
| Maximum Hole Depth (Decimal Inch) | 1.5800 |
| Insert Style | TM25 |
| Insert Size (mm) | 25.00 |
| Toolholder Style | TMS25 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 1.5800 |
| Number of Threading Inserts | 9 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 9 |
