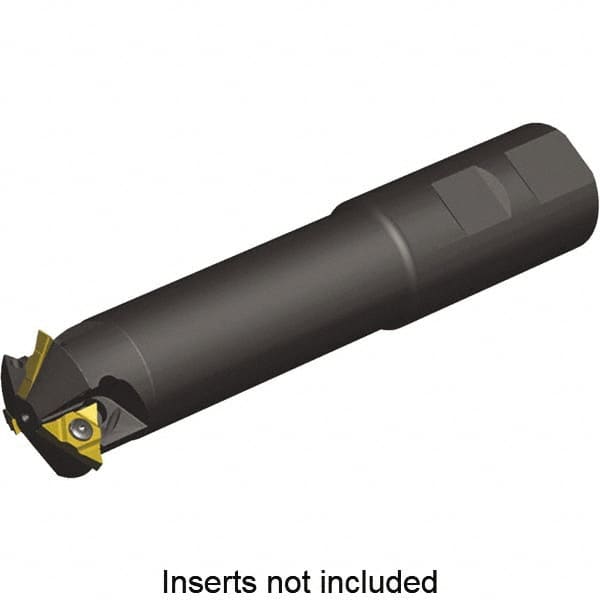

Kennametal - 1.66" Cut Diam, 5.04" Max Depth of Cut, 1-1/2" Shank Diam, Indexable Thread Mill - Insert Style KTM16, 16mm Insert Size, 4 Inserts, Toolholder Style KTMD, 7.82" OAL
Item #: 50341171
Brand: Kennametal
Model #: 5593121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.6600 |
| Maximum Hole Depth (Decimal Inch) | 5.0400 |
| Insert Style | KTM16 |
| Insert Size (mm) | 16.00 |
| Toolholder Style | KTMD |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 7.8200 |
| Number of Threading Inserts | 4 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 4 |
| Neck Diameter (mm) | 128.00 |
