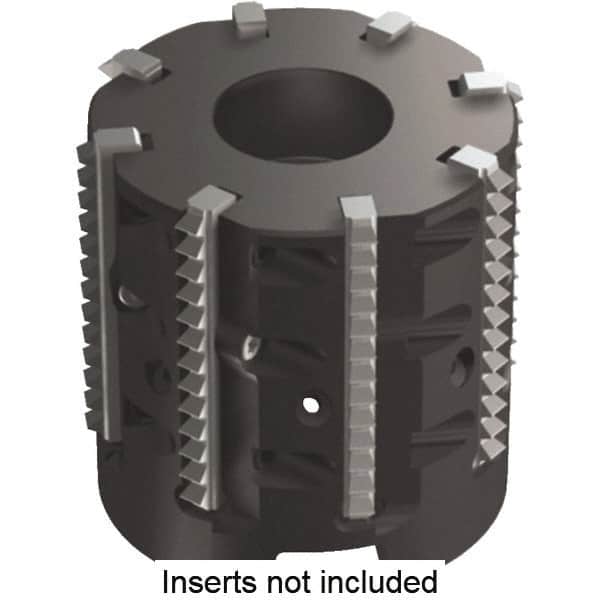

Kennametal - 1.93" Cut Diam, 1.97" Max Depth of Cut, 3/4" Arbor Hole Diam, Indexable Thread Mill - Insert Style TMT40, 40mm Insert Size, 7 Inserts, Toolholder Style TMST40, 1.97" OAL
Item #: 50341338
Brand: Kennametal
Model #: 5593197
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9300 |
| Maximum Hole Depth (Decimal Inch) | 1.9700 |
| Insert Style | TMT40 |
| Insert Size (mm) | 40.00 |
| Toolholder Style | TMST40 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 1.9700 |
| Number of Threading Inserts | 7 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 7 |
