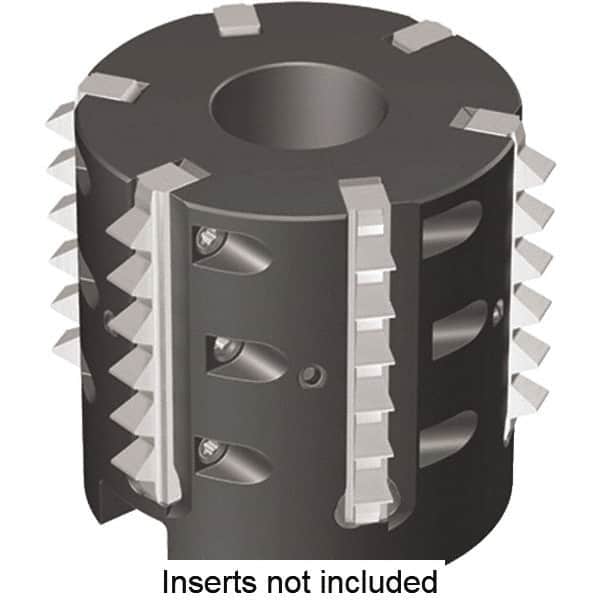

Kennametal - 58mm Cut Diam, 50mm Max Hole Depth, 27mm Arbor Hole Diam, Indexable Thread Mill - Insert Style TM41, 41mm Insert Size, 6 Inserts, Toolholder Style TMS41, 50mm OAL
Item #: 50341486
Brand: Kennametal
Model #: 5593176
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 58.00 |
| Maximum Hole Depth (mm) | 50.00 |
| Insert Style | TM41 |
| Insert Size (mm) | 41.00 |
| Toolholder Style | TMS41 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Length (mm) | 50.00 |
| Number of Threading Inserts | 6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 6 |
