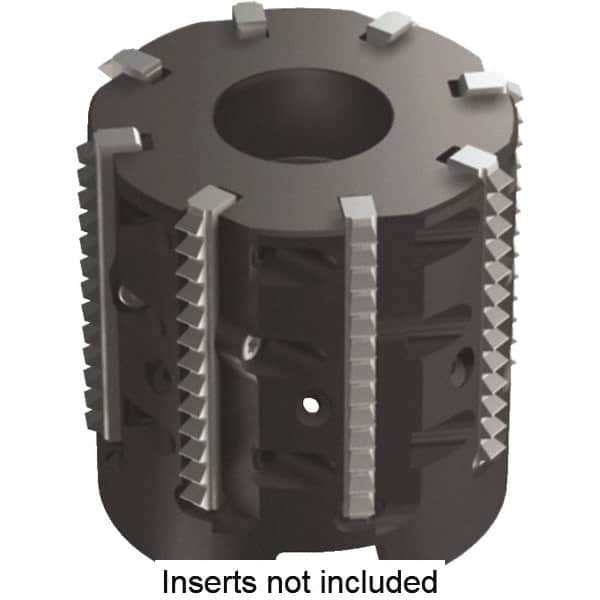

Kennametal - 2.32" Cut Diam, 2" Max Depth of Cut, 1" Arbor Hole Diam, Indexable Thread Mill - Insert Style TM40, 40mm Insert Size, 9 Inserts, Toolholder Style TMS40, 2" OAL
Item #: 50341676
Brand: Kennametal
Model #: 5593196
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3200 |
| Maximum Hole Depth (Decimal Inch) | 2.0000 |
| Insert Style | TM40 |
| Insert Size (mm) | 40.00 |
| Toolholder Style | TMS40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Number of Threading Inserts | 9 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 9 |
