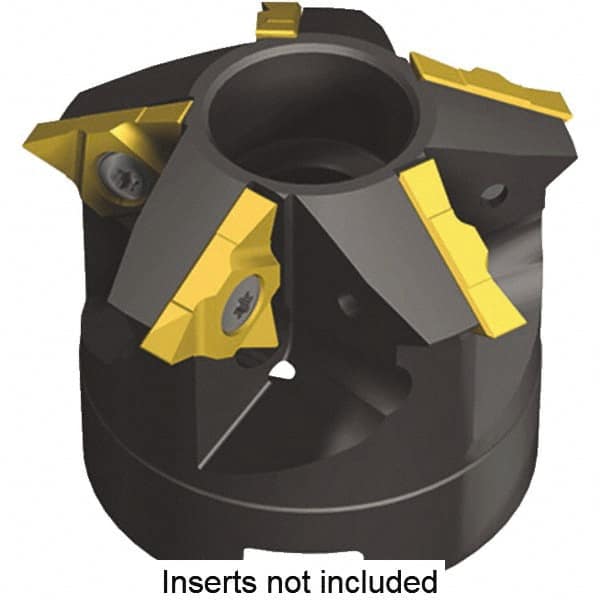

Kennametal - 2.046" Cut Diam, 1.58" Max Depth of Cut, 0.75mm Arbor Hole Diam, Indexable Thread Mill - Insert Style KTM16, 16mm Insert Size, 5 Inserts, Toolholder Style KTMD, 1.58" OAL
Item #: 50341700
Brand: Kennametal
Model #: 5593140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0460 |
| Maximum Hole Depth (Decimal Inch) | 1.5800 |
| Insert Style | KTM16 |
| Insert Size (mm) | 16.00 |
| Toolholder Style | KTMD |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (mm) | 0.75 |
| Overall Length (Decimal Inch) | 1.5800 |
| Number of Threading Inserts | 5 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 5 |
