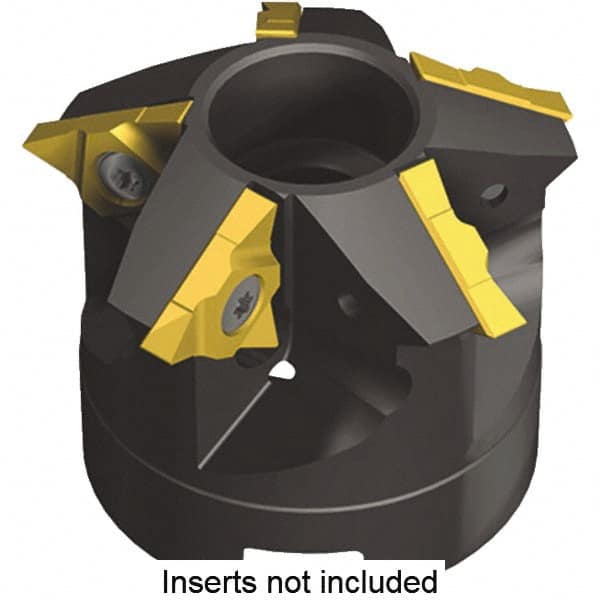

Kennametal - 55mm Cut Diam, 39.8mm Max Hole Depth, 22mm Arbor Hole Diam, Indexable Thread Mill - Insert Style KTM16, 16mm Insert Size, 6 Inserts, Toolholder Style KTMD, 40mm OAL
Item #: 50341718
Brand: Kennametal
Model #: 5593138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 55.00 |
| Maximum Hole Depth (mm) | 39.80 |
| Insert Style | KTM16 |
| Insert Size (mm) | 16.00 |
| Toolholder Style | KTMD |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Length (mm) | 40.00 |
| Number of Threading Inserts | 6 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 6 |
