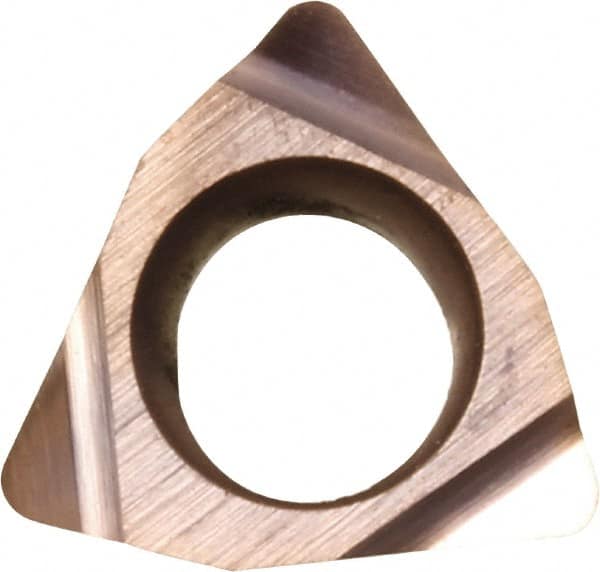

Kyocera - WBGT1.51.50.5 F Grade KW10 Carbide Turning Insert - Uncoated, 80° Trigon, 3/16" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 50363282
Brand: Kyocera
Model #: 8805707
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBGT |
| Insert Size | 1.51.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Chip Breaker | F |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | WBGT080202R-F |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 5 |
| Manufacturers Catalog Number | WBGT151505RF KW10 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
