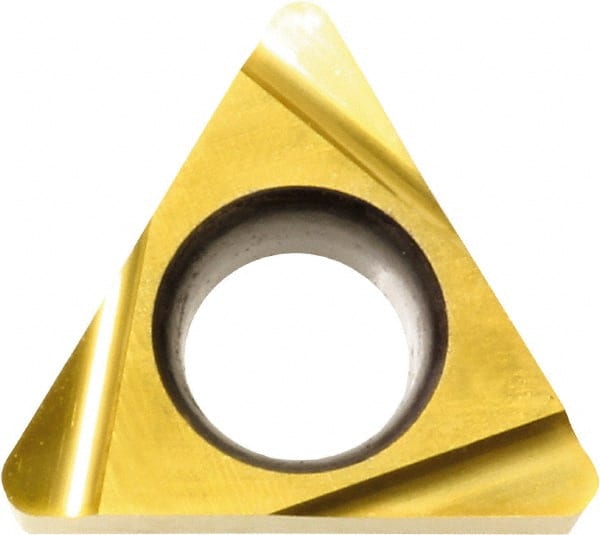

Kyocera - TBGT1.210.2 Grade KW10 Carbide Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 1/16" Thick, 0.004" Corner Radius
Item #: 50364652
Brand: Kyocera
Model #: 8813929
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TBGT |
| Insert Size | 1.210.2 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Thickness (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | TBGT060101R |
| Rake | Positive |
| Relief Angle | 5 |
| Manufacturers Catalog Number | TBGT12102R KW10 |
| Primary Workpiece Material | N |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
