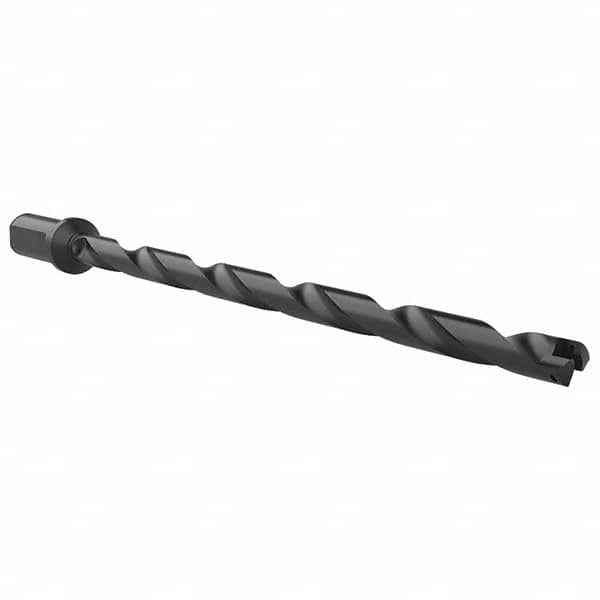

Allied Machine and Engineering - 45/64" to 15/16" Diam 14-3/8" Max Depth Helical Flute Spade Drill
Item #: 12329314
Brand: Allied Machine and Engineering
Model #: 26010H-100F
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (Inch) | 45/64 |
| Maximum Drill Diameter (Inch) | 15/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Long Length |
| Overall Length (Inch) | 18-17/64 |
| Maximum Drill Depth (Inch) | 14-3/8 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 15-27/32 |
| Shank Length (Inch) | 2-9/32 |
| Series Code/Seat Size | 1 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
