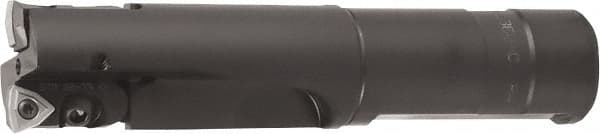

Kyocera - 2-3/4" Max Drill Depth, 1.46" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 50371145
Brand: Kyocera
Model #: 8600684
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | CD |
| Drill Diameter (Decimal Inch) | 1.4600 |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4600 |
| Overall Length/Projection (Decimal Inch) | 6.2500 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 3.5000 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (Decimal Inch) | 1.2500 |
| Series | Coremaster Coredrill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
