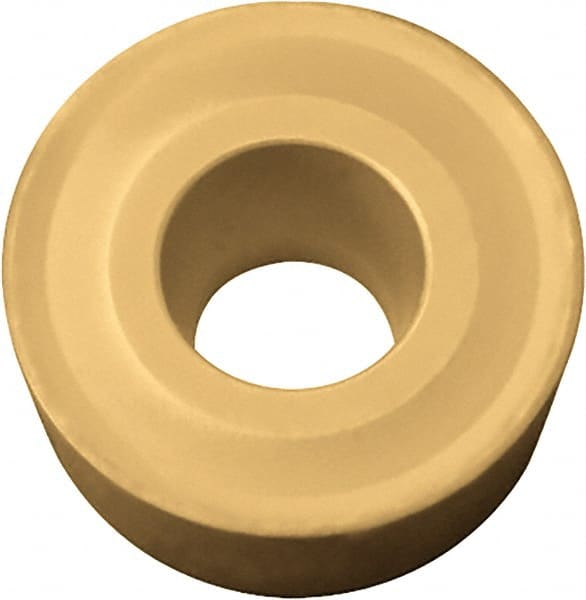

Kyocera - RCMX1003M0 Grade TN60 Cermet Turning Insert - Uncoated, Round, 10mm Inscr Circle, 1/8" Thick
Item #: 50373679
Brand: Kyocera
Model #: 8807917
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 1003M0 |
| Material | Cermet |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | TN60 |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.61 |
| Hole Diameter (Decimal Inch) | 0.1420 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCMX1003M0 TN60 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
