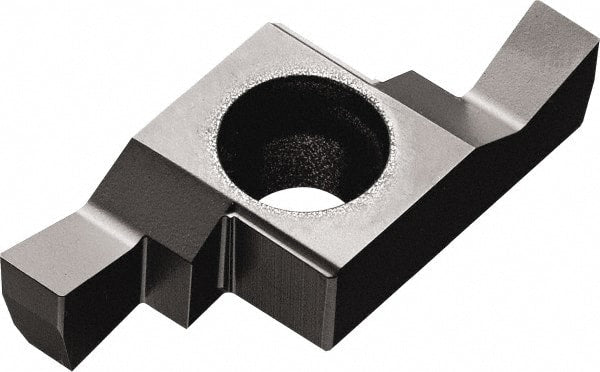

Kyocera - 200GE D Grade TN6020, 2mm Cutting Width Cermet Grooving Insert - 3.2mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiCN Finish
Item #: 50375450
Brand: Kyocera
Model #: 8825766
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 200 |
| Material | Cermet |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | TN6020 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.05 |
| Cutting Height (Decimal Inch) | 0.1988 |
| Relief Angle | 2 |
| Chipbreaker | D |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Overall Length (mm) | 16.44 |
| Overall Length (Decimal Inch) | 0.6472 |
| Series | Sige |
| Manufacturers Catalog Number | GER200-010D |
| Overall Width (mm) | 6.80 |
| Overall Width (Decimal Inch) | 0.2677 |
