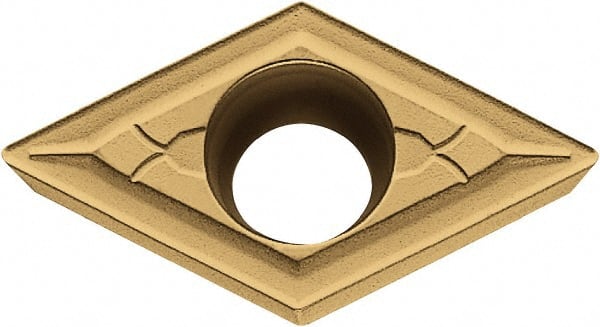

Kyocera - DCMT21.50.5 GK Grade CA525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 50382480
Brand: Kyocera
Model #: 8840204
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 21.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CA525 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | GK |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | DCMT070202GK |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT21505GK CA525 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
