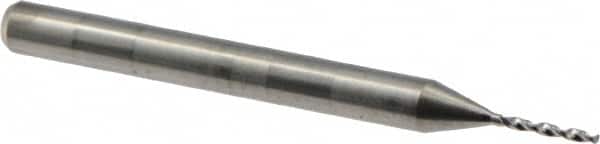

M.A. Ford - #68, 130° Drill Point, 1/8" Shank Diam, Fast Spiral Circuit Board Drill Bit
Item #: 90605817
Brand: M.A. Ford
Model #: 30203100
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high-speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 0.79 |
| Drill Bit Size (Wire) | #68 |
| Drill Bit Size (Decimal Inch) | 0.0310 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (mm) | 6.35 |
| Flute Length (Decimal Inch) | 0.2500 |
| Flute Length (Inch) | 1/4 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Fast Spiral |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0003 |
| Series/List | 302 |
| Shank Diameter (Decimal Inch) | 0.1250 |
