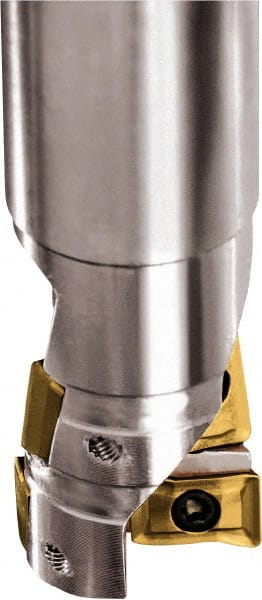

Kyocera - 1-1/4" Cut Diam, 0.374" Max Depth of Cut, 1-1/4" Shank Diam, 5.858" OAL, Indexable Square Shoulder End Mill - GOMT 160408ER-D, JOMT 160408ER-D Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50387901
Brand: Kyocera
Model #: 8818908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 5.8580 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Number of Cutter Inserts | 4 |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 1.4170 |
| Insert Compatibility | GOMT 160408ER-D; JOMT 160408ER-D |
| Shank Length (Decimal Inch) | 3.9370 |
