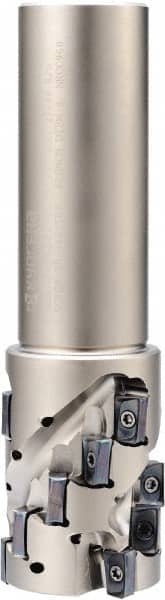

Kyocera - 50mm Cut Diam, 53mm Max Depth of Cut, 42mm Shank Diam, 160mm OAL, Indexable Square Shoulder Helical End Mill - LOMU 1505..ER-GH, LOMU 1505..ER-GM, LOMU 1505..ER-SM Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series M-Four
Item #: 50387943
Brand: Kyocera
Model #: 8838419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6535 |
| Overall Length/Projection (mm) | 160.00 |
| Overall Length/Projection (Decimal Inch) | 6.2992 |
| Lead Angle | 90 |
| Series | M-Four |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 53.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.086614 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MEW |
| Number of Flutes | 3 |
| Head Length (mm) | 63.00 |
| Head Length (Decimal Inch) | 2.4803 |
| Weldon Flat | No |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Shank Length (Decimal Inch) | 3.8189 |
| Shank Length (mm) | 97.00 |
