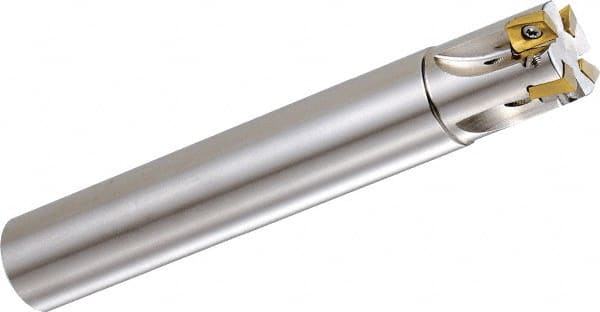

Kyocera - 8mm Cut Diam, 6mm Max Depth of Cut, 10mm Shank Diam, 80mm OAL, Indexable Square Shoulder End Mill - BDMT 0703 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388479
Brand: Kyocera
Model #: 8822917
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length/Projection (mm) | 80.00 |
| Overall Length/Projection (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.236220 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MECX |
| Number of Flutes | 1 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 0703 |
| Shank Length (Decimal Inch) | 2.5197 |
| Shank Length (mm) | 64.00 |
| Maximum RPM | 48100 |
