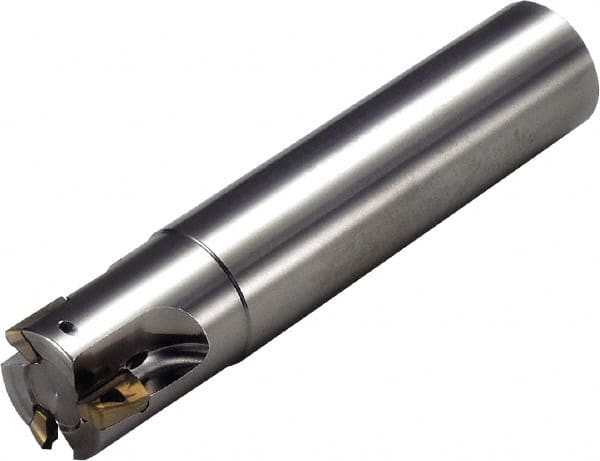

Kyocera - 32mm Cut Diam, 15.7mm Max Depth of Cut, 63mm OAL, Indexable Square Shoulder End Mill - BDGT 1704, BDMT 1704 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50388685
Brand: Kyocera
Model #: 8837968
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 63.00 |
| Overall Length/Projection (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.618110 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 3 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | No |
| Insert Compatibility | BDGT 1704; BDMT 1704 |
| Maximum RPM | 30000 |
