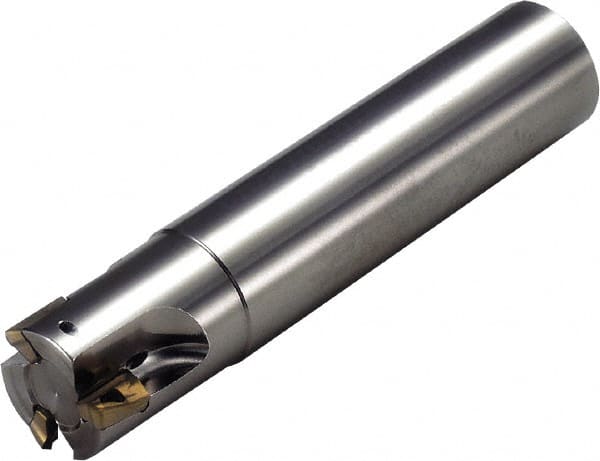

Kyocera - 1/2" Cut Diam, 0.394" Max Depth of Cut, 1/2" Shank Diam, 2.65" OAL, Indexable Square Shoulder End Mill - BDMT 1103 Inserts, Weldon Shank, 90° Lead Angle
Item #: 50388842
Brand: Kyocera
Model #: 8604746
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.70 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length/Projection (Decimal Inch) | 2.6500 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 0.7870 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 1103 |
| Shank Length (Decimal Inch) | 1.8630 |
| Maximum RPM | 50800 |
