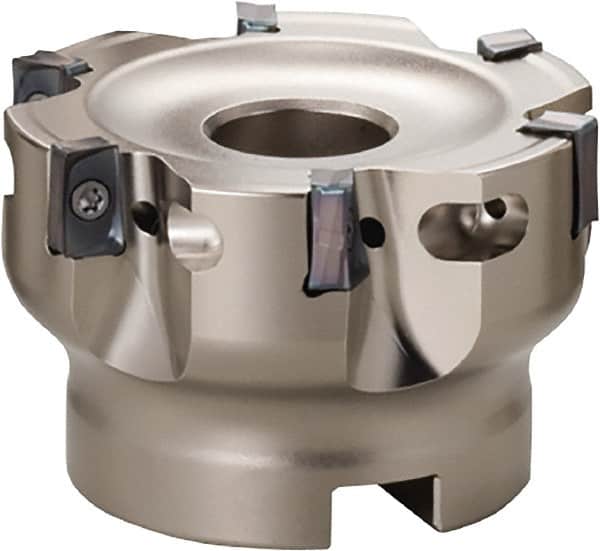

Kyocera - 5 Inserts, 50mm Cut Diam, 11mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 40mm High, LOMU 1004..ER-GH, LOMU 1004..ER-GM & LOMU 1004..ER-SM Insert Compatibility, Through Coolant, Series M-Four
Item #: 50389733
Brand: Kyocera
Model #: 8835682
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 11.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.4331 |
| Lead Angle | 0 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | LOMU 1004..ER-GH; LOMU 1004..ER-GM; LOMU 1004..ER-SM |
| Series | M-Four |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | MEW |
| Number of Flutes | 5 |
| Cutting Rake Angle | -19 |
| Rake | Negative |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Depth (Decimal Inch) | 0.236220 |
| Keyway Depth (mm) | 6 |
| Maximum RPM | 22500 |
| ISO Number | MEW050R-10-5T-M |
| Complete Insert Compatibility | LOMU 100404ER-GM; LOMU 100408ER-GH; LOMU 100408ER-GM; LOMU 100408ER-SM; LOMU 100412ER-GM; LOMU 100416ER-GM; LOMU 100420ER-GM |
