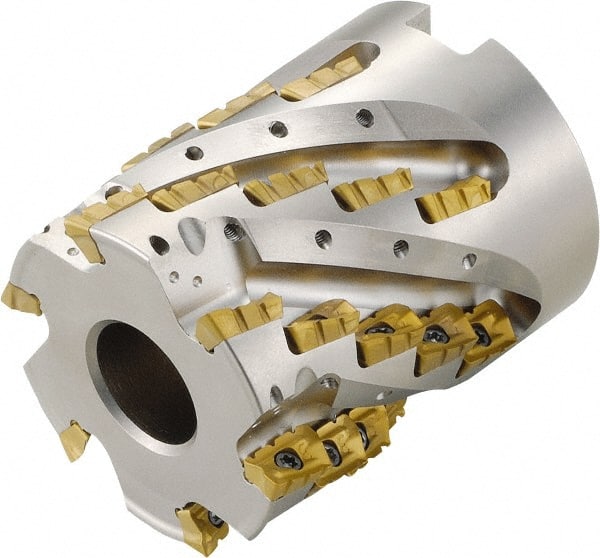

Kyocera - 8 Inserts, 2" Cut Diam, 0.417" Arbor Diam, 1.181" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.047" High, BDMT 1704 Insert Compatibility
Item #: 50389782
Brand: Kyocera
Model #: 8824808
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.4170 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.0470 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.3130 |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Counterbore Diameter (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
