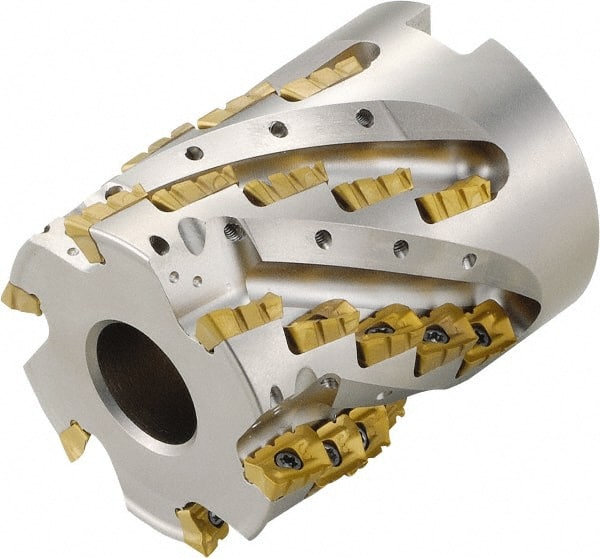

Kyocera - 24 Inserts, 100mm Cut Diam, 38.1mm Arbor Diam, 59mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 85mm High, BDMT 1704 Insert Compatibility
Item #: 50389790
Brand: Kyocera
Model #: 8829608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (mm) | 85.00 |
| Overall Height (Decimal Inch) | 3.3465 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 59.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3228 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 16.00 |
| Keyway Width (Decimal Inch) | 0.6299 |
| Keyway Depth (Decimal Inch) | 0.393701 |
| Keyway Depth (mm) | 10 |
| ISO Number | MECH100R-17-4-6T |
| Complete Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
