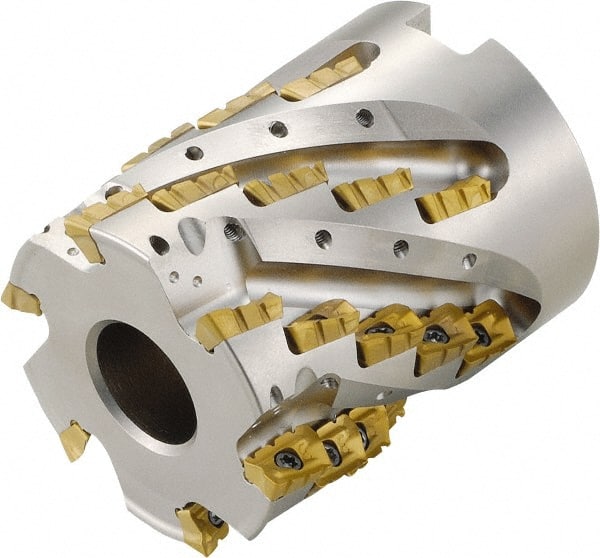

Kyocera - 12 Inserts, 63mm Cut Diam, 14mm Arbor Diam, 45mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 70mm High, BDMT 1704 Insert Compatibility
Item #: 50389832
Brand: Kyocera
Model #: 8829606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 14.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.5512 |
| Lead Angle | 90 |
| Overall Height (mm) | 70.00 |
| Overall Height (Decimal Inch) | 2.7559 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7717 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Keyway Depth (Decimal Inch) | 0.236220 |
| Keyway Depth (mm) | 6 |
| ISO Number | MECH063R-17-3-4T |
| Complete Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
