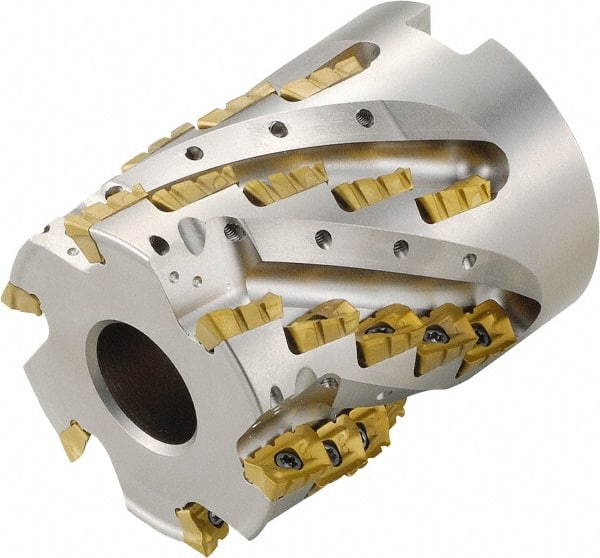

Kyocera - 30 Inserts, 50mm Cut Diam, 11mm Arbor Diam, 46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 63mm High, BDMT 11T3 Insert Compatibility
Item #: 50389865
Brand: Kyocera
Model #: 8832087
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 11.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.4331 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | BDMT 11T3 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Depth (Decimal Inch) | 0.248031 |
| Keyway Depth (mm) | 6.30 |
| ISO Number | MECH050R-11-5-6T-M |
| Complete Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
