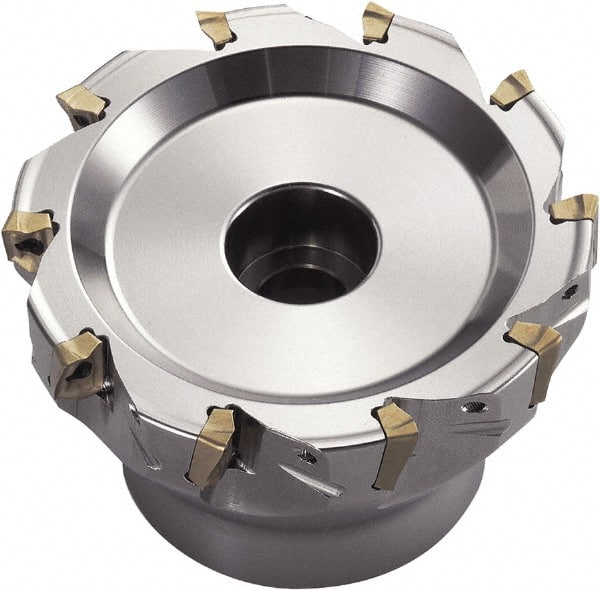

Kyocera - 11 Inserts, 125mm Cut Diam, 32mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, BDMT 11T3 Insert Compatibility, Through Coolant
Item #: 50389931
Brand: Kyocera
Model #: 8829587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | BDMT 11T3 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Screw |
| Cutter Style | MEC |
| Number of Flutes | 11 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Depth (Decimal Inch) | 0.374016 |
| Keyway Depth (mm) | 9.50 |
| Maximum RPM | 15000 |
| Pitch | Standard |
| ISO Number | MEC125R-11-11T-M |
| Complete Insert Compatibility | BDMT 11T302ER-JS; BDMT 11T302ER-JT; BDMT 11T302FR; BDMT 11T302FR-JA; BDMT 11T304ER-JS; BDMT 11T304ER-JT; BDMT 11T304FR; BDMT 11T304FR-JA; BDMT 11T308ER-JS; BDMT 11T308ER-JT; BDMT 11T308FR-JA; BDMT 11T312ER-JT; BDMT 11T316ER-JT; BDMT 11T320ER-JT; BDMT 11T3 |
