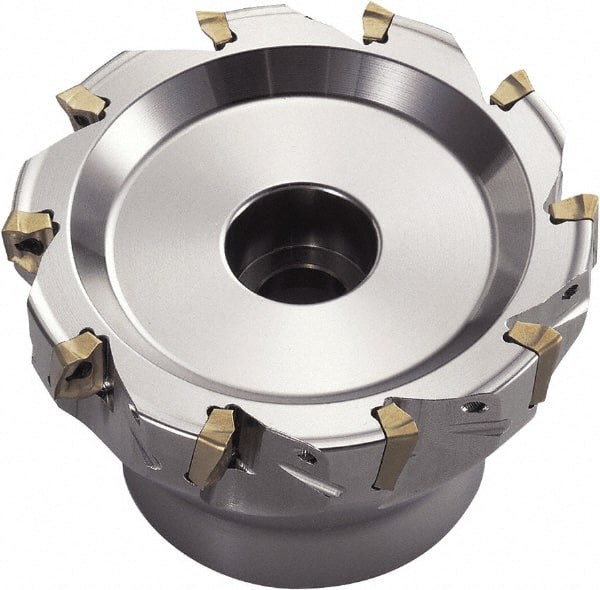

Kyocera - 9 Inserts, 100mm Cut Diam, 17.6mm Arbor Diam, 15.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, BDMT 1704 Insert Compatibility, Through Coolant
Item #: 50389949
Brand: Kyocera
Model #: 8832583
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 17.60 |
| Arbor Hole Diameter (Decimal Inch) | 0.6929 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | MEC |
| Number of Flutes | 9 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 12.70 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Keyway Depth (Decimal Inch) | 0.314961 |
| Keyway Depth (mm) | 8 |
| Maximum RPM | 10500 |
| Pitch | Fine |
| ISO Number | MEC100R-17-9TN |
| Complete Insert Compatibility | BDMT 170402FR; BDMT 170404ER-JS; BDMT 170404ER-JT; BDMT 170404FR; BDMT 170404FR-JA; BDMT 170408ER-JS; BDMT 170408ER-JT; BDMT 170408FR-JA; BDMT 170412ER-JT; BDMT 170416ER-JT; BDMT 170420ER-JT; BDMT 170420FR-JA; BDMT 170424ER-JT; BDMT 170431ER-JT; BDMT 1704 |
