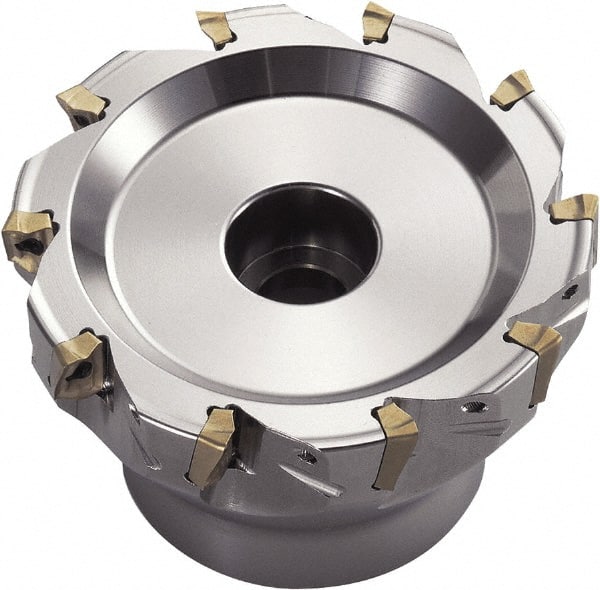

Kyocera - 9 Inserts, 100mm Cut Diam, 17.6mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 55mm High, BDMT 11T3 Insert Compatibility, Through Coolant
Item #: 50389964
Brand: Kyocera
Model #: 8820925
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 17.60 |
| Arbor Hole Diameter (Decimal Inch) | 0.6929 |
| Lead Angle | 0 |
| Overall Height (mm) | 55.00 |
| Overall Height (Decimal Inch) | 2.1654 |
| Insert Compatibility | BDMT 11T3 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | MEC |
| Number of Flutes | 9 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Keyway Depth (Decimal Inch) | 0.314961 |
| Keyway Depth (mm) | 8 |
| Maximum RPM | 17000 |
| Pitch | Standard |
| ISO Number | MEC100R-11-9T-MN |
| Complete Insert Compatibility | BDGT 11T302FR-JA; BDGT 11T304FR-JA; BDGT 11T308FR-JA; BDMT 110302ER-JS; BDMT 110304ER-JS; BDMT 110308ER-JS; BDMT 11T302ER-JS; BDMT 11T302ER-JT; BDMT 11T302FR; BDMT 11T304ER-JS; BDMT 11T304ER-JT; BDMT 11T304FR; BDMT 11T308ER-JS; BDMT 11T308ER-JT; BDMT 11T3 |
