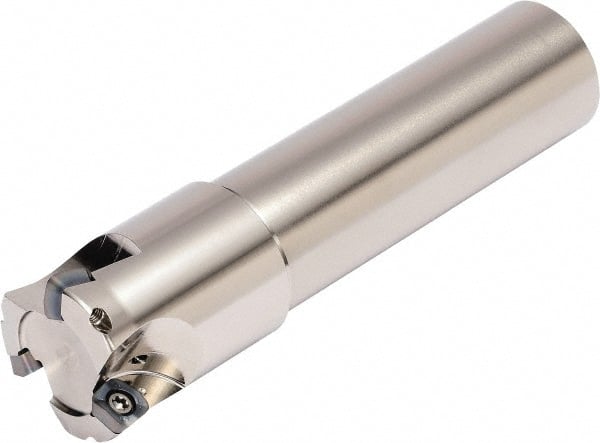

Kyocera - 80mm Cut Diam, 2mm Max Depth, 42mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, SOMT 140... Insert, MFH Toolholder, Through Coolant
Item #: 50390418
Brand: Kyocera
Model #: 8839479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.149606 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.653543 |
| Number of Cutter Inserts | 5 |
| Insert Style | SOMT 140... |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 5 |
| Maximum RPM | 6400 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Head Length (mm) | 50.00 |
| Manufacturers Catalog Number | MFH 80-S42-14-5T |
