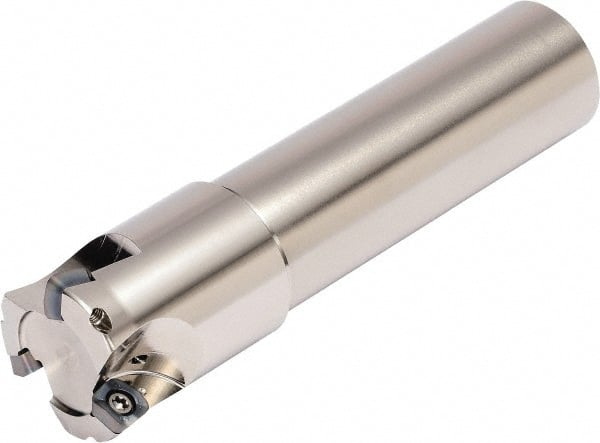

Kyocera - 25mm Cut Diam, 1.5mm Max Depth, 25mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, SOMT 100420ER-.. Insert, MFH Toolholder, Through Coolant
Item #: 50390525
Brand: Kyocera
Model #: 8841720
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.984252 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.984252 |
| Number of Cutter Inserts | 2 |
| Insert Style | SOMT 100420ER-.. |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Maximum RPM | 17000 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Head Length (mm) | 180.00 |
| Manufacturers Catalog Number | MFH 25-S25-10-2T-300 |
