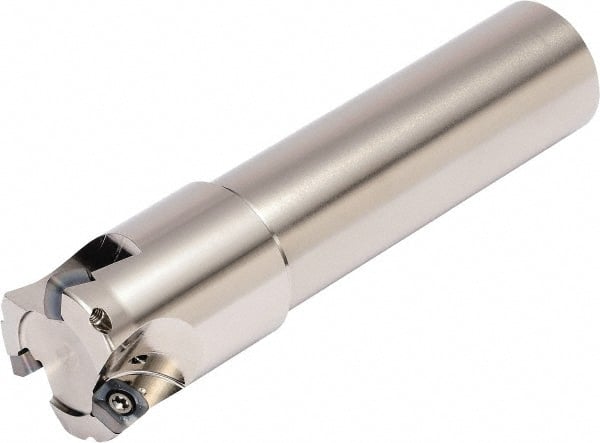

Kyocera - 38.1mm Cut Diam, 1.4986mm Max Depth, 1-1/2" Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, SOMT 100420ER-.. Insert, MFH Toolholder, Through Coolant
Item #: 50390624
Brand: Kyocera
Model #: 8606404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.1000 |
| Cutting Diameter (Decimal Inch) | 1.500000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Cutter Inserts | 4 |
| Insert Style | SOMT 100420ER-.. |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Maximum RPM | 11500 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Manufacturers Catalog Number | MFH 1500-W150-10-4T |
