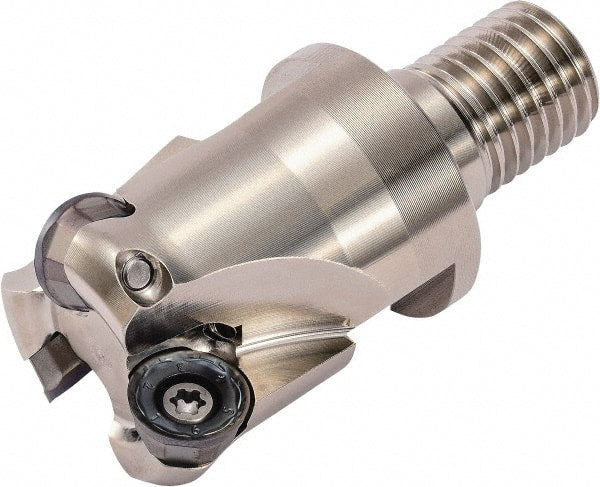

Kyocera - 16mm Cutting Diam, 4mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RDGT 08, RDMT 08 Insert, MRX Toolholder
Item #: 50391069
Brand: Kyocera
Model #: 8839460
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.629921 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDGT 08; RDMT 08 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 43.00 |
| Overall Length (Decimal Inch) | 1.6929 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Modular Connection Size | M8 |
| ISO Number | MRX16-M08-08-2T |
