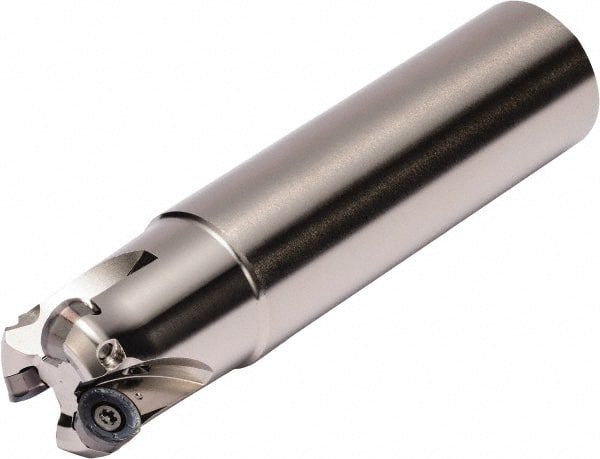

Kyocera - 63mm Cutting Diam, 42mm Shank Diam, 8mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 5 Inserts, RPGT 16, RPMT 16 Insert, MRX Toolholder
Item #: 50391879
Brand: Kyocera
Model #: 8839177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.480315 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.653543 |
| Number of Cutter Inserts | 5 |
| Insert Style | RPGT 16; RPMT 16 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| ISO Number | MRX63-S42-16-5T |
