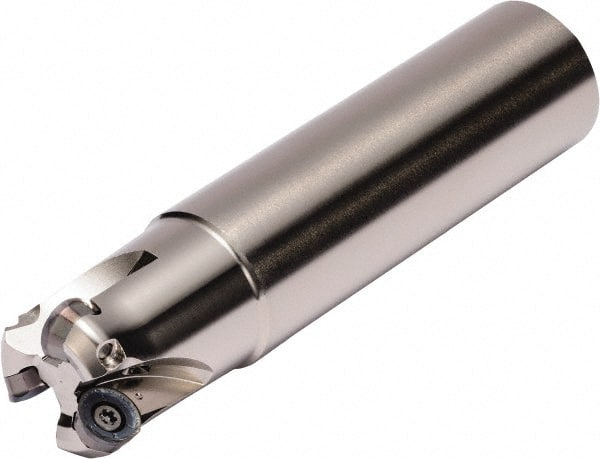

Kyocera - 2" Cutting Diam, 1-1/2" Shank Diam, Weldon Flat Indexable Copy End Mill - 4 Inserts, RPGT 16, RPMT 16 Insert, MRX Toolholder
Item #: 50392059
Brand: Kyocera
Model #: 8839317
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Cutter Inserts | 4 |
| Insert Style | RPGT 16; RPMT 16 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (Decimal Inch) | 6.6930 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 1.5750 |
| ISO Number | MRX2000-W150-16-4T |
