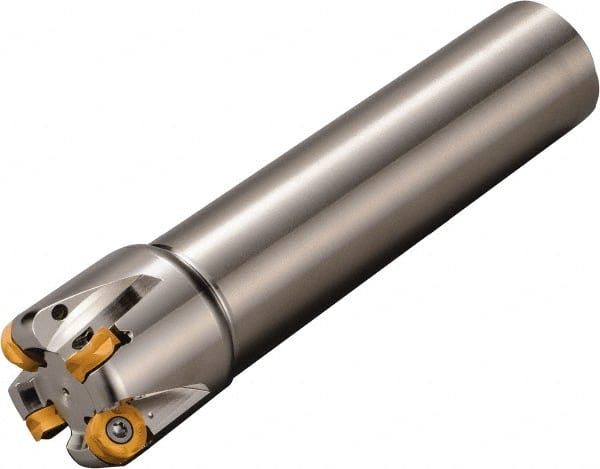

Kyocera - 40mm Cutting Diam, 32mm Shank Diam, 6mm Max Depth of Cut, Weldon Flat Indexable Copy End Mill - 4 Inserts, ROMU 12... Insert, MRW Toolholder
Item #: 50392158
Brand: Kyocera
Model #: 8838427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.574803 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.259843 |
| Number of Cutter Inserts | 4 |
| Insert Style | ROMU 12... |
| Toolholder Style | MRW |
| Series | RAD-8 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| ISO Number | MRW40-W32-12-4T |
