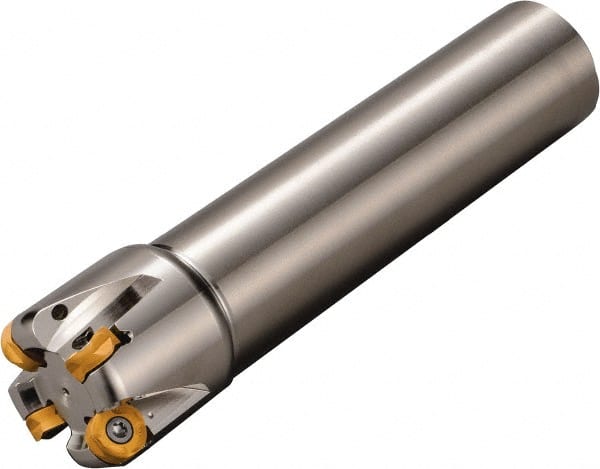

Kyocera - 50.8mm Cutting Diam, 1-1/2" Shank Diam, 8mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, ROMU 16... Insert, MRW Toolholder
Item #: 50392224
Brand: Kyocera
Model #: 8838442
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.8000 |
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.50 |
| Number of Cutter Inserts | 3 |
| Insert Style | ROMU 16... |
| Toolholder Style | MRW |
| Series | RAD-8 |
| Overall Length (Decimal Inch) | 12.0000 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.5750 |
| ISO Number | MRW2000-S150-16-3T-8 |
