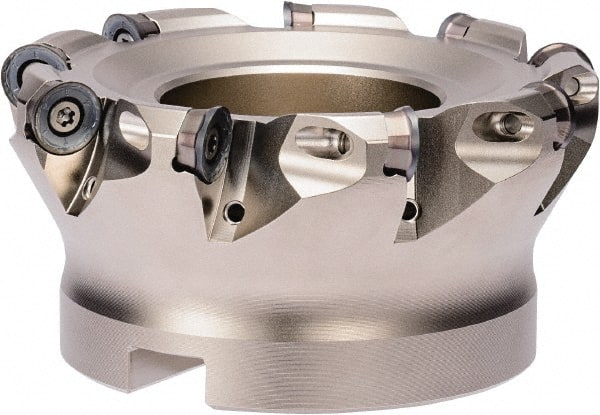

Kyocera - 100mm Cut Diam, 6mm Max Depth, 14.4mm Arbor Hole, 9 Inserts, RPGT 12, RPMT 12 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 12,000 Max RPM, 50mm High, Through Coolant, Series RAD-6
Item #: 50392307
Brand: Kyocera
Model #: 8839191
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 14.40 |
| Arbor Hole Diameter (Decimal Inch) | 0.5669 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RAD-6 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | RPGT 12; RPMT 12 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 12000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.0709 |
| Hub Diameter (mm) | 78.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 1.8110 |
| Counterbore Diameter (mm) | 46.00 |
| Complete Insert Compatibility | RPGT 1204M0ER-GM; RPGT 1204M0ER-SM; RPMT 1204M0EN-GH; RPMT 1204M0ER-GM |
| ISO Number | MRX100R-12-9T-M |
