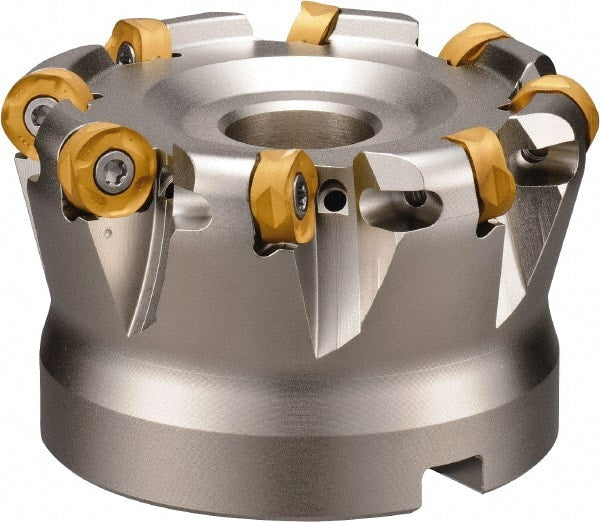

Kyocera - 2-1/2" Cut Diam, 8.001mm Max Depth, 0.312" Arbor Hole, 6 Inserts, ROMU 16... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 12,800 Max RPM, 1.575" High, Through Coolant, Series RAD-8
Item #: 50392497
Brand: Kyocera
Model #: 8838475
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.3120 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | RAD-8 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | ROMU 16... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 12800 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7480 |
| Complete Insert Compatibility | ROMU 1605M0ER-GH; ROMU 1605M0ER-GM; ROMU 1605M0ER-SM |
| ISO Number | MRW2500R-16-6T |
