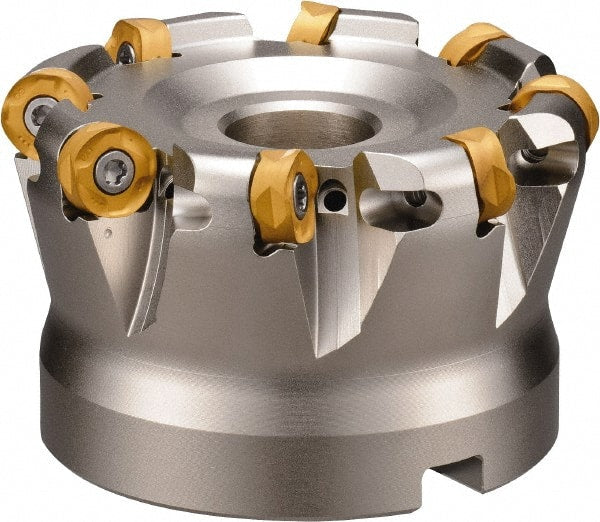

Kyocera - 80mm Cut Diam, 8mm Max Depth, 9.5mm Arbor Hole, 7 Inserts, ROMU 16... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 11,000 Max RPM, 50mm High, Through Coolant, Series RAD-8
Item #: 50392562
Brand: Kyocera
Model #: 8838470
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 9.50 |
| Arbor Hole Diameter (Decimal Inch) | 0.3740 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RAD-8 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | ROMU 16... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 11000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Hub Diameter (mm) | 70.00 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Counterbore Diameter (mm) | 20.00 |
| Complete Insert Compatibility | ROMU 1605M0ER-GH; ROMU 1605M0ER-GM; ROMU 1605M0ER-SM |
| ISO Number | MRW080R-16-7T |
