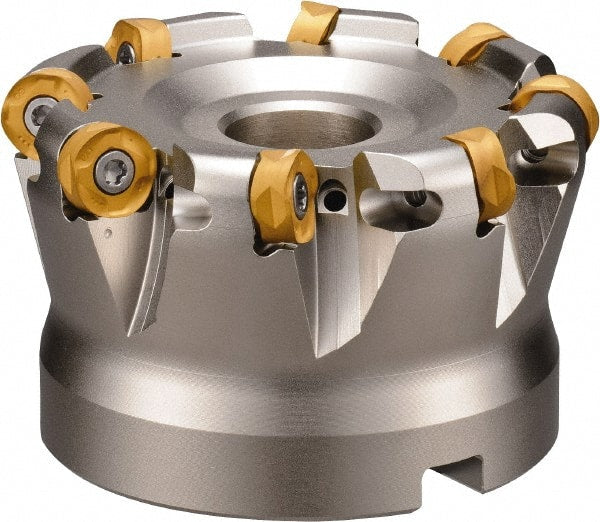

Kyocera - 80mm Cut Diam, 6mm Max Depth, 12.4mm Arbor Hole, 6 Inserts, ROMU 12... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 12,000 Max RPM, 50mm High, Through Coolant, Series RAD-8
Item #: 50392588
Brand: Kyocera
Model #: 8838448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 12.40 |
| Arbor Hole Diameter (Decimal Inch) | 0.4882 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RAD-8 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | ROMU 12... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 12000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Hub Diameter (mm) | 70.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Counterbore Diameter (mm) | 20.00 |
| Complete Insert Compatibility | ROMU 1204M0ER-GH; ROMU 1204M0ER-GM; ROMU 1204M0ER-SM |
| ISO Number | MRW080R-12-6T-M |
