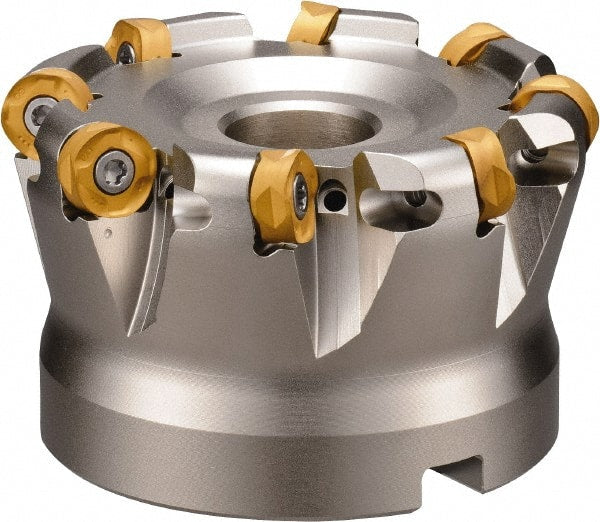

Kyocera - 63mm Cut Diam, 6mm Max Depth, 10.4mm Arbor Hole, 7 Inserts, ROMU 12... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 14,000 Max RPM, 40mm High, Through Coolant, Series RAD-8
Item #: 50392612
Brand: Kyocera
Model #: 8838447
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 10.40 |
| Arbor Hole Diameter (Decimal Inch) | 0.4094 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | RAD-8 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | ROMU 12... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 14000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7480 |
| Counterbore Diameter (mm) | 19.00 |
| Complete Insert Compatibility | ROMU 1204M0ER-GH; ROMU 1204M0ER-GM; ROMU 1204M0ER-SM |
| ISO Number | MRW063R-12-7T-M |
