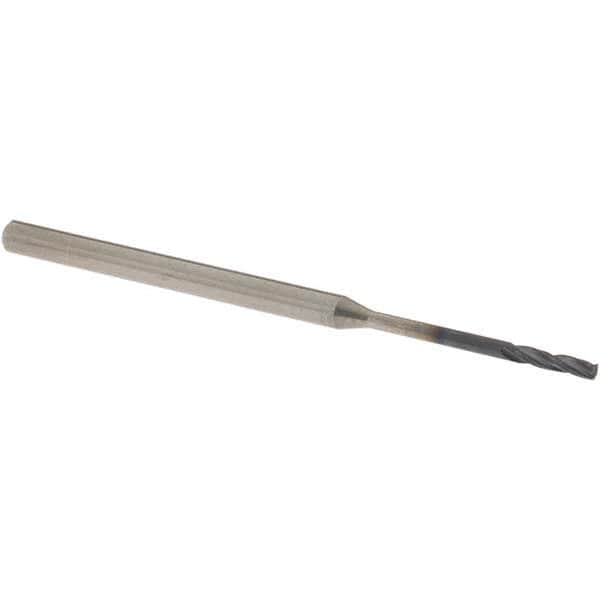

OSG - 1.6mm 140° 3-Flute Solid Carbide Extra Length Drill Bit
Item #: 51687325
Brand: OSG
Model #: 8569016
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
EXO is used at high speeds and temperatures. It has an ultra-smooth finish and is used on stainless steel, titanium and nickel-chromium-based alloys. EXOCARB is a proprietary coating exclusive to OSG Tap and Die, Inc.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 1.60 |
| Drill Bit Size (Decimal Inch) | 0.0630 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | EXO |
| Overall Length (mm) | 62.00 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (mm) | 3.00 |
| Flute Length (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 20xD |
| Flute Type | Spiral |
| Number of Flutes | 3 |
| Point Type | Standard |
| Shank Type | Straight |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.014 |
| Series/List | 5310 |
